New 20W Solar Battery Maintainer Kit


Product Rating:


Newpowa's NPA20S-12TCK trickle charger kit helps keep your battery maintained with the use of solar power. This 20W kit comes with all accessories needed to plug into your 12V battery.  With convenient Anderson connection and other 2 options for cigarette lighter and alligator clips,It is perfect for RVs, fences, boats, and many more applications to keep your batteries from going flat.

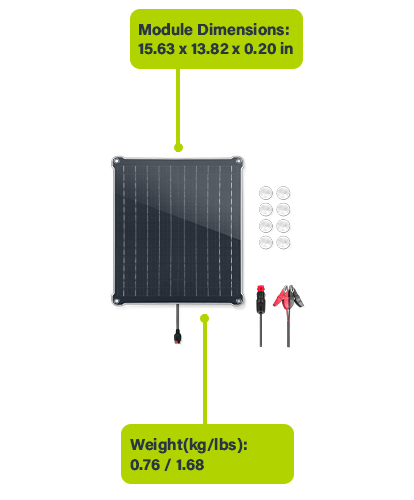

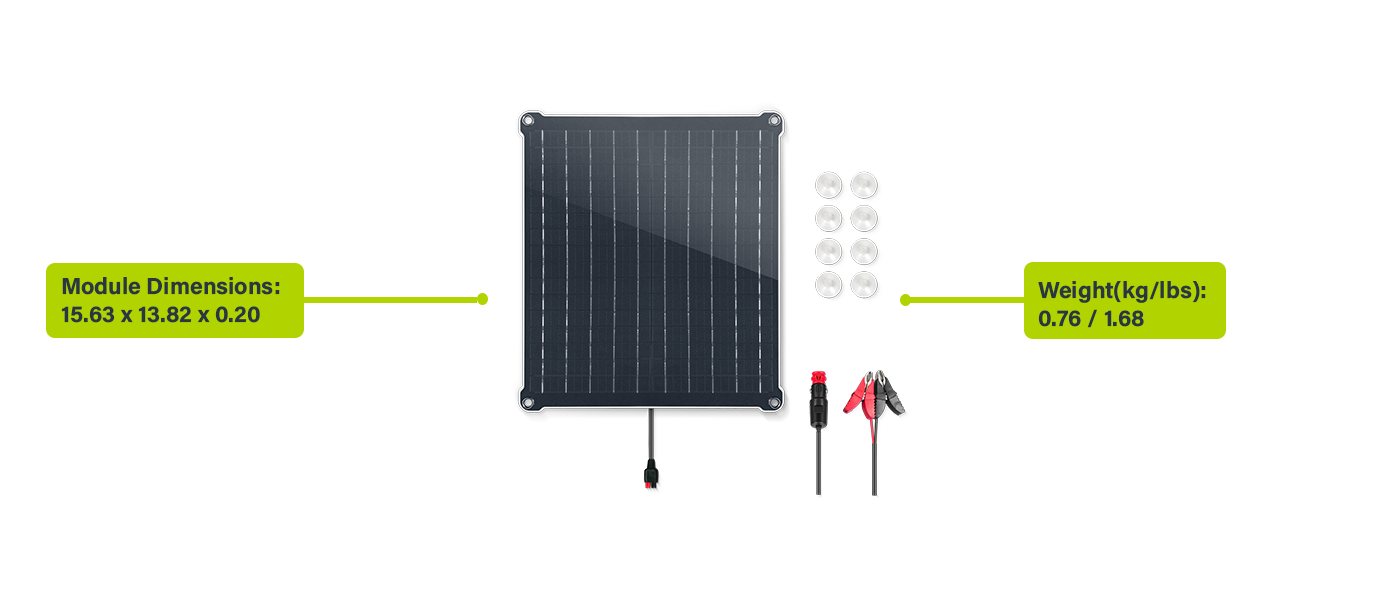

Kit Includes

  • 1x 20W High Efficiency Monocrystalline Solar panel with pre-attached 3ft Anderson connector.
  • 1x Anderson to Alligator Clip Cable
  • 1x Anderson to Cigarette lighter adapter Cable
  • 8x Suction cup
  • Product dimension: 15.63x13.82x0.20in (397 x 351 x 5 mm)
  • Net weight: 1.68lbs
  • Product Code NPA20S-12TCK
  • Maximum power (Pmax) 20W
  • Voltage at Pmax (Vmp) 18.00V
  • Current at Pmax (Imp) 1.11A
  • Open-circuit voltage (Voc) 21.60V
  • Short-circuit current (Isc) 1.16A
  • Temperature coefficient of Voc -(80±10)mV/°C
  • Temperature coefficient of Isc (0.065±0.015)%/ °C
  • Temperature coefficient of power -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
  • Operating temperature -40°C to 85°C
  • Maximum system voltage 1000V DC
  • Power tolerance ± 3%

Solar Panel:

  • 2-Year Limited Material and Parts Workmanship Warranty
  • 10-Year 90% Output Warranty
  • 25-Year 80% Output Warranty

Other Accessories:

  • 1-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
