New 10A 12V PWM Solar Charge Controller


Product Rating:


Newpowa's New Weatherproof 10A PWM Solar Charge Controller with built-in Bluetooth maintains compatibility with 12V systems. PWM technology is integrated into a compact design, that allows for easy installation in RVs, portable solar, etc. Designed with vivid LCD graphics that keep you informed of the solar systems' and battery information in real-time.

Key Features

  • Smart PWM technology, high efficiency
  • LCD display design read operating data and working conditions easily
  • 7 Battery Type Compatible Lithium-ion, LiFeP04, LTO, Gel, AGM, WET, and Calcium
  • Weatherproof design, suitable for indoor or outdoor use
  • Support Android or iOS mobile phone APP, realize wireless monitoring function of solar controller
  • External temperature sensor optional, automatic temperature compensation
  • Four stages charge way: Fast, boost, equalization, float
  • Perfect EMC & thermal design
  • Full automatic electronic protection function
  • Product Code NPR-WN20-12P
  • Max solar/Load current 10A
  • System Voltage 12V
  • Max Charging Power 300W
  • Max Volt on Bat. Terminal 20V
  • Max Volt on PV Terminal 25V
  • Temp. Compensation -4.17mV/K per cell(Boost, Equalization), -3.33mV/K per cell (Float)
  • Communication Bluetooth
  • Battery type Lithium-ion, LiFeP04, LTO, Gel, AGM, WET, and Calcium

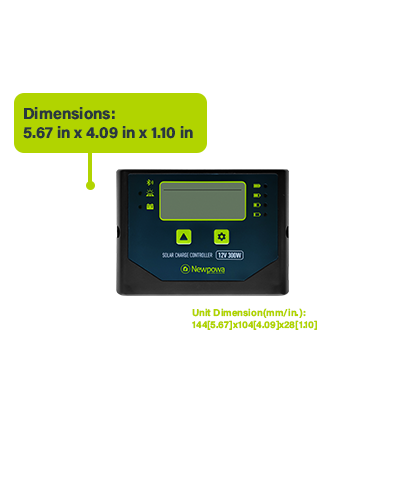

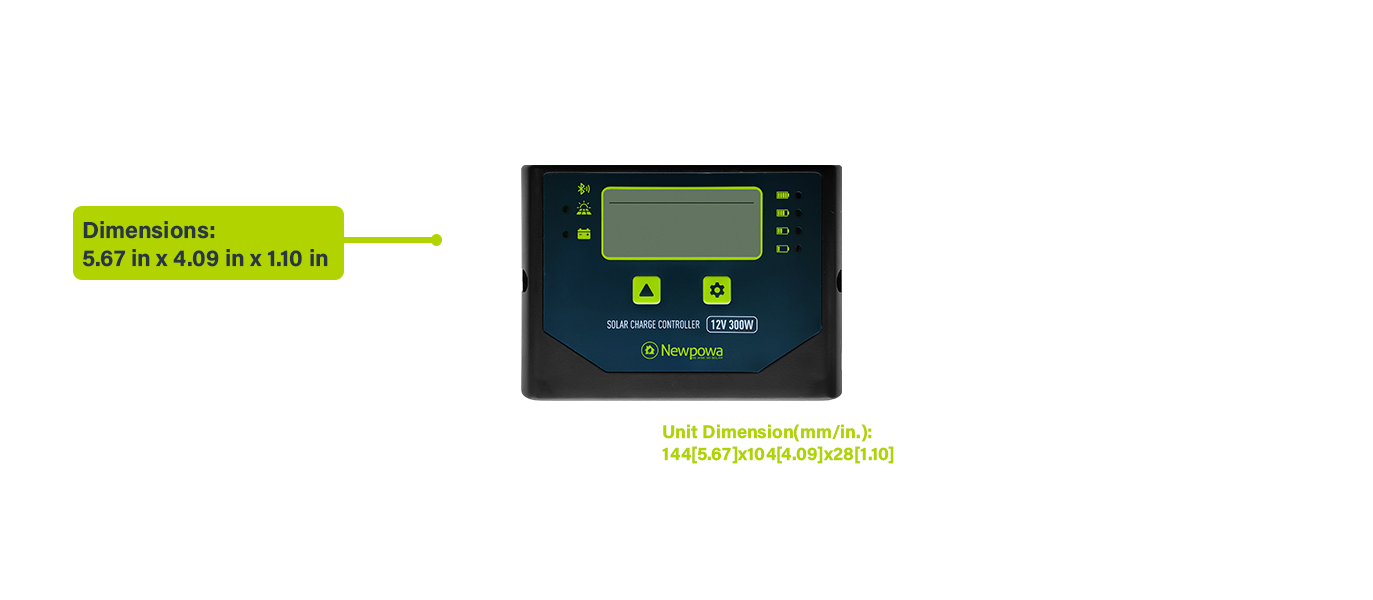

  • Dimensions/Weight 144x104x28mm / 180g
  • Ambient temperature -4~+131°F / -20~+55°C
  • 2-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
