800W Monocrystalline 24V Solar Kit (4PCS 200W 24V)

Name: 800W Monocrystalline 24V Solar Kit (4PCS 200W 24V)
SKU: NPA200S-24I-4PCS KIT
Price: 1156 USD
Availability: OutOfStock

SKU: NPA200S-24I-4PCS KIT

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa 400W Solar Kit(4pcs 200W 24V) is carefully arranged to meet your DIY solar power needs. The Kit includes all the necessary components, 4x 200W mono solar panels, a 40A MPPT Solar Charge Controlle, a pair of 20ft 10AWG cables, ring terminals, 4 to 1 parallel connectors, and 4 sets of z-bracket mounts. It can be applied to RV, marine, van/airstream conversions, Overlanding, traffic systems, and various off-grid applications.

Superior performance solar panels ensure efficient power input. Solar panels also allow you to run limited low-watt electrical equipment without power connections.

40A MPPT charge controller with vivid LCD graphics can keep you informed of the solar systems and battery information in real-time, which is also compatible with deep cycle batteries. The controller is embedded with self-diagnostics and electronic protection functions that prevent damage from installation mistakes or system faults.

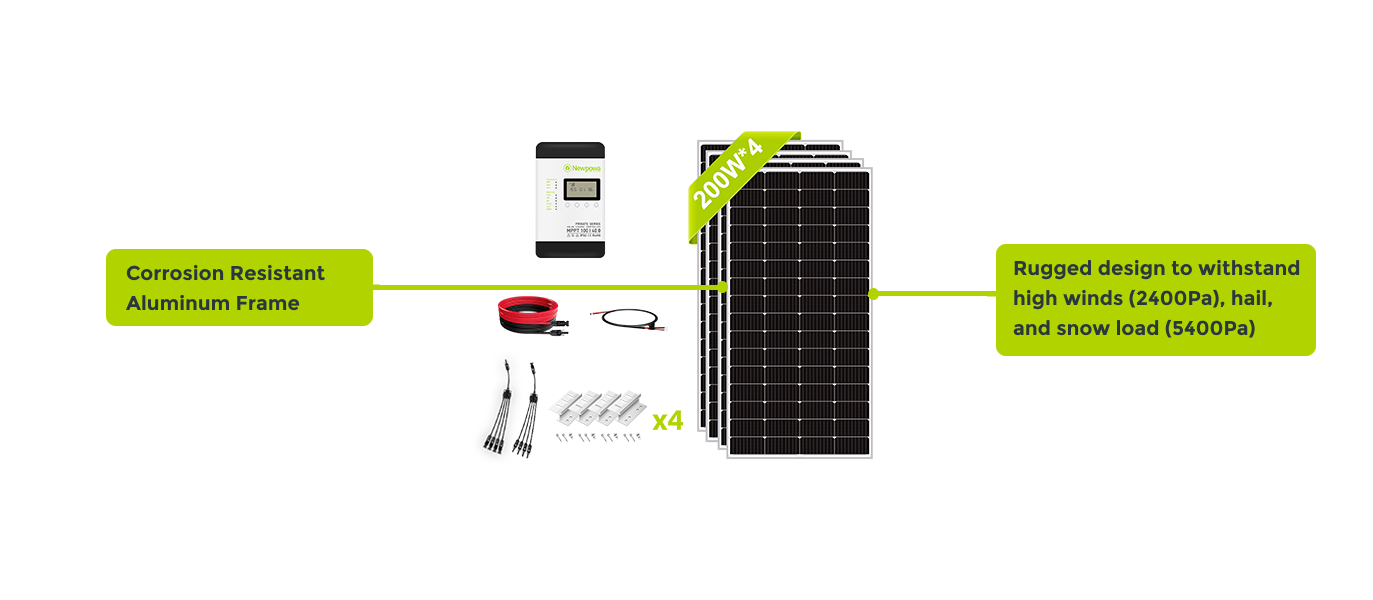

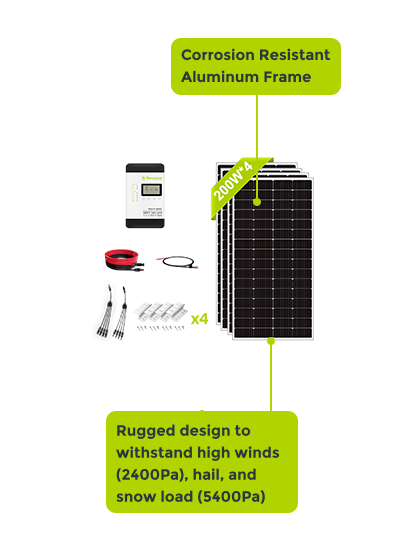

Kit Includes

4x High-efficiency 200W/24V Monocrystalline Solar Panels (NPA200S-24I) with Pre-attached 3ft Cables
1x 40A MPPT Solar Charge Controller with Built-in Bluetooth (NPR-FG40-24M)
1x 20ft 10AWG Cable W/(R/B) (NPC-20RB)
1x 3ft 12AWG Cable W/ Ring Terminals & Fuse Protection (NPRV-3)
1x 1ft Flexible 4-1 Branch Parallel Connector Set F/MMMM, M/FFFF (NPC-47)
4x Set of Z-Mount Kit (4/set) for Roof Mounting W/ Stainless Steel Bolts, Nuts and Washers (NPB-UZ)

Warranty
Shipping Policy
Downloads

Product Code NPA75S-12H
Maximum power (Pmax) 75W
Voltage at Pmax (Vmp) 17.0V
Current at Pmax (Imp) 4.41A
Open-circuit voltage (Voc) 20.23V
Short-circuit current (Isc) 4.68A
Power tolerance -(80±10)mV/°C

Temperature coefficient of Isc (0.065±0.015)%/ °C
Temperature coefficient of power -(0.5±0.05)%/ °C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
Operating temperature 40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%

Solar Panel:

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Charge Controller:

2-Year Limited Material and Parts Workmanship Warranty

Other Accessories:

1-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
