40W Gate Operator Kit

Name: 40W Gate Operator Kit
SKU: NPA40S-24KR-KIT
Price: 99 USD
Availability: OutOfStock

SKU: NPA40S-24KR-KIT

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's New 40W Gate Operator Kit is ideal for bringing power to small electronics while away from the grid. It is commonly used in gate opener, RV, marine, and many other small applications.

New design:

Smaller in size, same output, higher efficiency compared with other brands.

Key Features

40W/24V Monocrystalline high-efficiency solar panel
High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 24V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting

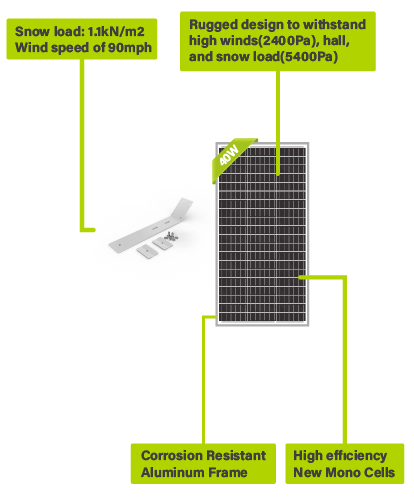

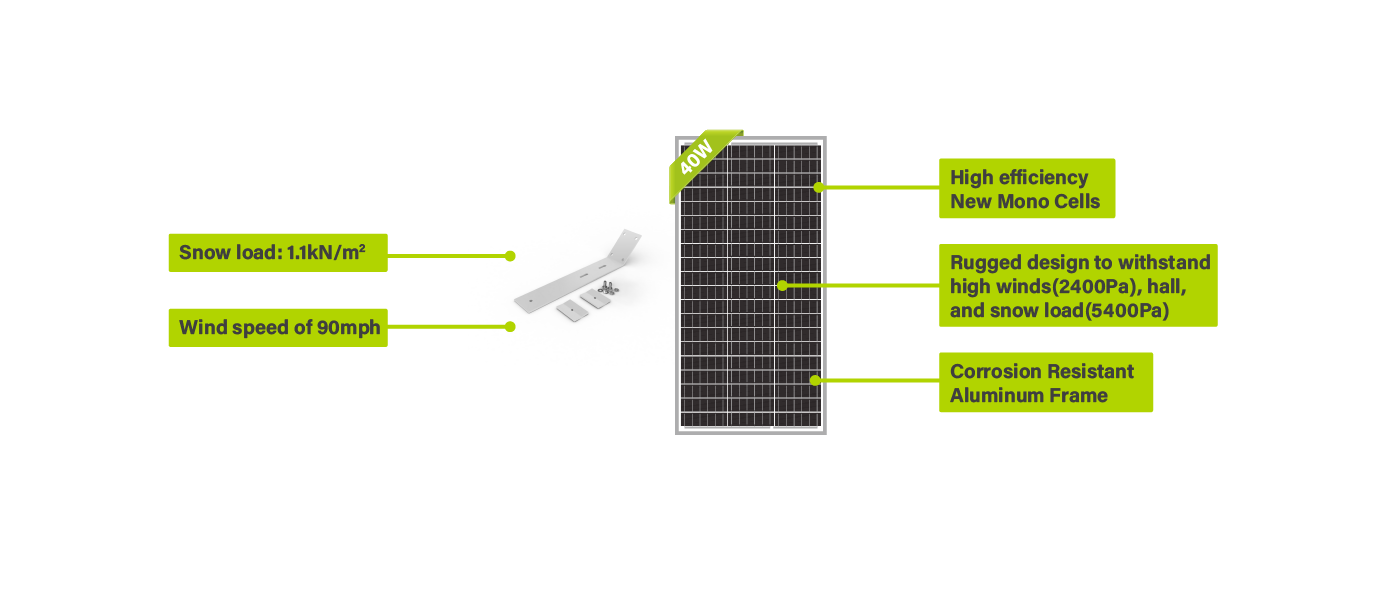

Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

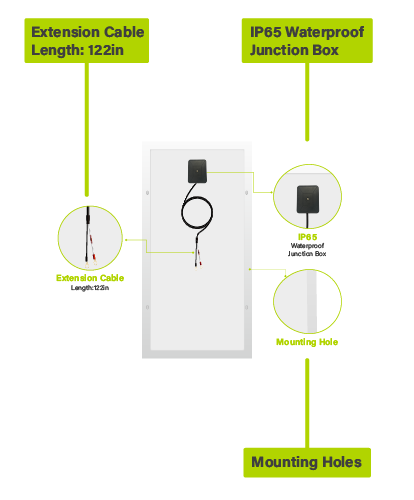

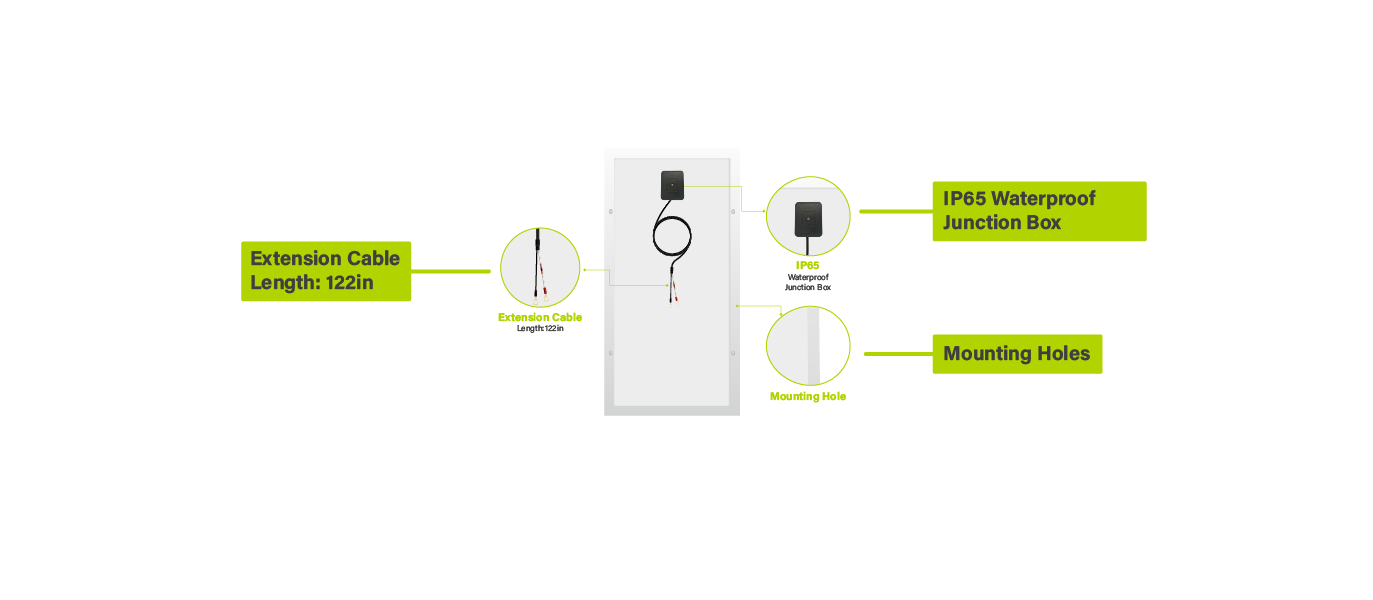

Pre-attached 10ft length cable, with inline diode and ring terminals
Product dimensions: 680 x 345 x 30mm (26.77 x 13.58 x 1.18 in)
Comes with L bracket for mounting

No response after clicking the button?
Don't worry! This often happens due to browser settings. For the fastest response, please use our dedicated B2B Wholesale Contact Form: Click Here for Wholesale Inquiry Form

Warranty
Shipping Policy
Downloads

Product Code NPA40S-24KR
Maximum power (Pmax) 40W
Voltage at Pmax (Vmp) 34.4V
Current at Pmax (Imp) 1.17A
Open-circuit voltage (Voc) 40.6V
Short-circuit current (Isc) 1.24A
Temperature coefficient of Voc -0.28%/°C

Temperature coefficient of Isc +0.05%/°C
Temperature coefficient of power -0.36%/°C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 45±2°C
Operating temperature -40°C to 85°C
Power tolerance ± 3%

Solar Panel:

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Other Accessories:

1-Year Limited Material and Parts Workmanship Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
