10W Monocrystalline 12V Solar Panel

Name: 10W Monocrystalline 12V Solar Panel
SKU: NPA10S-12J
Price: 25.99 USD
Availability: InStock

SKU: NPA10S-12J

Product Rating:

Current Stock:

Request Bulk Pricing

Technical Parameters

Description

Newpowa's 10W 12V Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small off-grid applications.

Key Features

10W/12V monocrystalline solar panel
High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 12V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting
Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

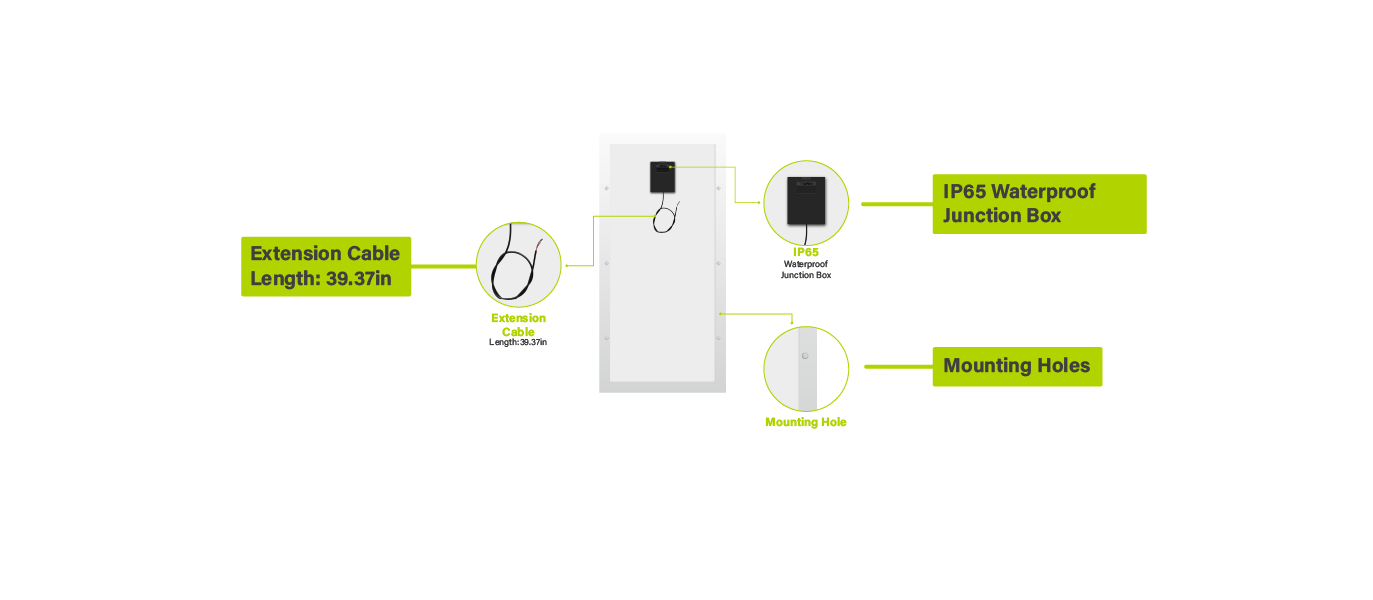

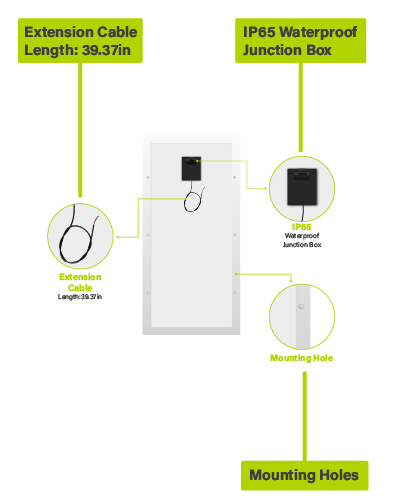

Pre-attached 3ft wire with bare ends

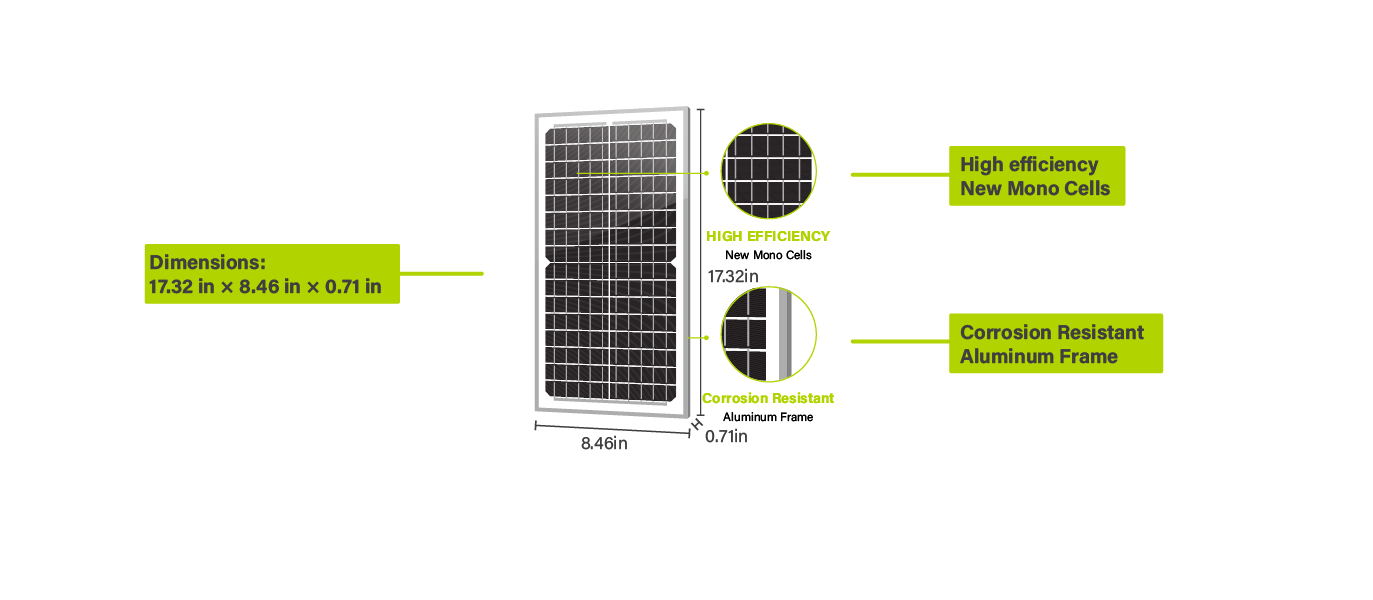

Product dimensions: 440 x 215 x 18mm (17.32 x 8.46 x 0.71 in)
Compatible mount brackets (sold separately): NPB-15P, NPB-35P, NPB-35L

Specs
Warranty
Shipping
Downloads

Product Code NPA10S-12J
Maximum Power (Pmax) 10W
Voltage at Pmax (Vmp) 18.34V
Current at Pmax (Imp) 0.55A
Open-Circuit Voltage (Voc) 21.57V
Short-Circuit Current (Isc) 0.59A
Cells Monocrystalline

Operating Temperature -40°C to 85°C
Max System Voltage 1000V DC
Positive Power Tolerance 0~3%
Module Dimensions 17.32x8.46x0.71 in
Module Weight 2.50 lbs
Temp. Coeff. of Power -0.38%/K
Temp. Coeff. of Voc -0.36%/K

2-Year Limited Material & Parts Warranty: Covers manufacturing defects and workmanship.
10-Year 90% Output Warranty: Guaranteed efficiency levels for a full decade.
25-Year 80% Output Warranty: Long-term performance security for your investment.

Newpowa offers free shipping for all domestic orders within the 48 contiguous states. Orders are typically processed and shipped within 1-2 business days from our Southern California warehouse. A tracking number will be automatically sent to your email upon fulfillment. Please note we cannot ship solar panels to PO Box addresses.
