DISC 100W 12V Monocrystalline Solar Panel

Name: DISC 100W 12V Monocrystalline Solar Panel
SKU: NPA100S-12H-SQ
Price: 87.5 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

SKU: NPA100S-12H-SQ

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's 100W 12V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to applications when away from the grid. It is commonly used in RV, marine, gate opener, boat, camping, and many other off-grid applications.

New design:

Reduction in footprint, same output, and higher efficiency.

Key Features

100W/12V monocrystalline high-efficiency solar panel
High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 12V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting

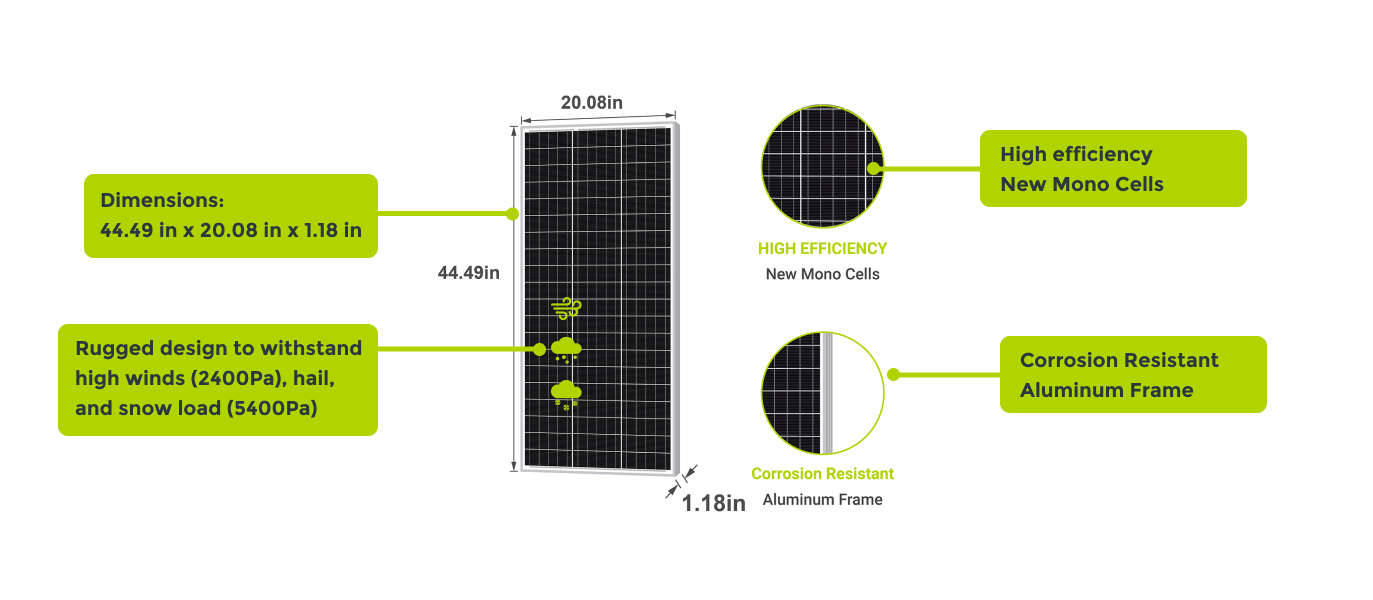

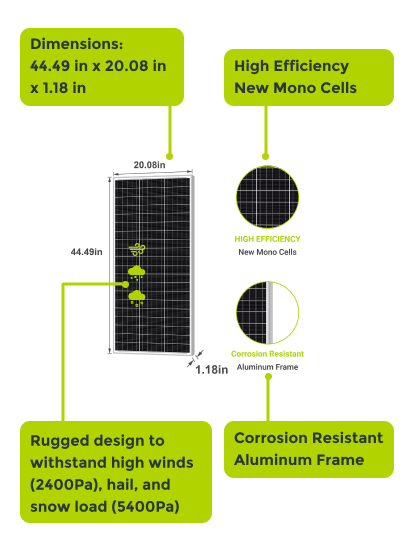

Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

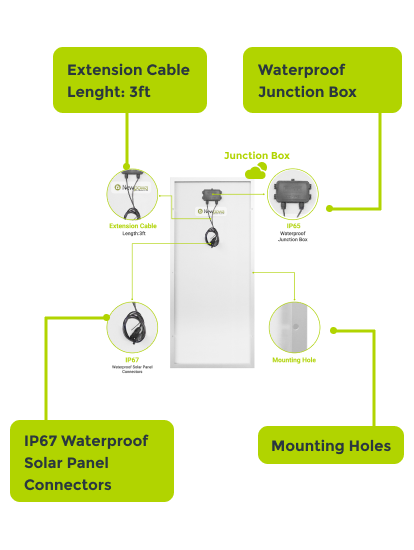

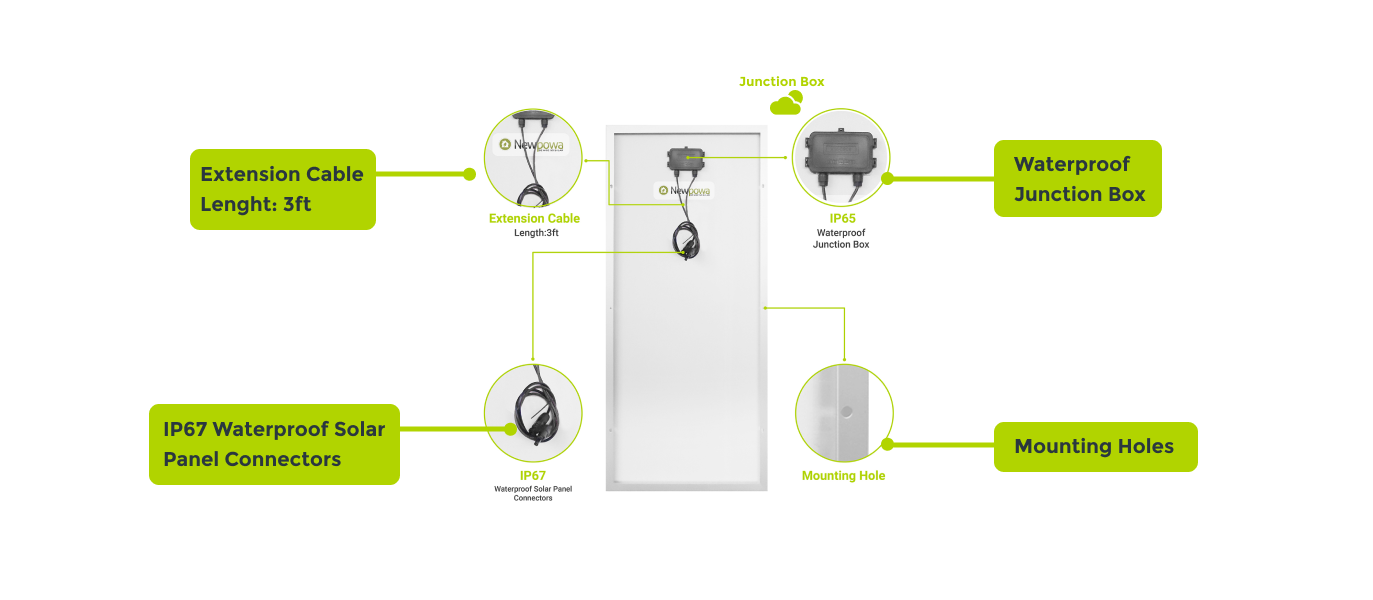

Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
Pre-attached 3ft wire with connectors (M/F)
Product dimensions: 1130 x 505 x 30mm (44.49 x 20.08 x 1.18 in)
Compatible mount brackets (sold separately): NPB-UZ, NPB-100P, NPB-200P, NPB-400P

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPA100S-12H-SQ
Maximum power (Pmax) 100W
Voltage at Pmax (Vmp) 16.77V
Current at Pmax (Imp) 6.26A
Open-circuit voltage (Voc) 19.83V
Short-circuit current (Isc) 6.56A
Temperature coefficient of Voc -(80±10)mV/°C

Temperature coefficient of Isc (0.065±0.015)%/ °C
Temperature coefficient of power -(0.5±0.05)%/ °C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
Operating temperature -40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%
Maximum Series Fuse Rating 15A

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.

Download

25th Apr 2022 Robert W Longamore
5

I tested the 100w panel in direct sunlight and got only 80w then I inspected my charge controller and saw I had a loose ground I tighten it up and I got 103w and 107w in two separate tests at 64 F and at 68 F air temp and panel temperatures were 73 F and. 81 F respectively I would recommend this panel to anyone looking for high efficiency low cost panels
27th Oct 2021 Colin Vinion
5

reviews from Colin
28th Aug 2021 josh osmialowski
4

Last year, I started to build a rudimentary solar system to supply power to a couple small batteries that I used to power an old car stereo and some lights and I thought this panel was a good upgrade to an array of 30 and 25 watt panels I'd constructed not long before. The panels are of good construction and perform just fine. I bought a single panel at first, then another.. then two more for 400 watts. This year I bought another four. But this year the game changed to charging a small 12v battery bank to doing that, but also funneling excess back to the grid via grid-tie inverter.The panels, so far are doing as well as I could expect given my locale. I may have to do more research into it, but I have never gotten a full 800W from my array, usually about 80%, so if you live in northern latitudes, plan to buy more panels.
25th Aug 2021 Terry Huskey
5

I have purchased a total of 14 of these panels and they perform as they should, without the price tag of a more known brand.
