5W 12V Monocrystalline Solar Panel

5W 12V Monocrystalline Solar Panel

SKU: NPA5S-12I

Product Rating:

Technical Parameters

Description

Newpowa's 5W 12V Monocrystalline Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small off-grid applications.

Key Features

  • 5W/12V Monocrystalline solar panel
  • High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
  • Nominal 12V DC for standard output

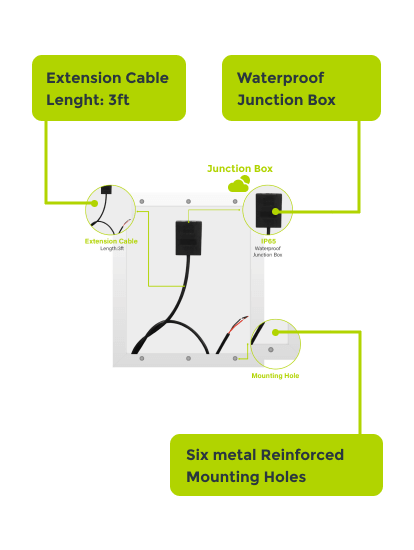

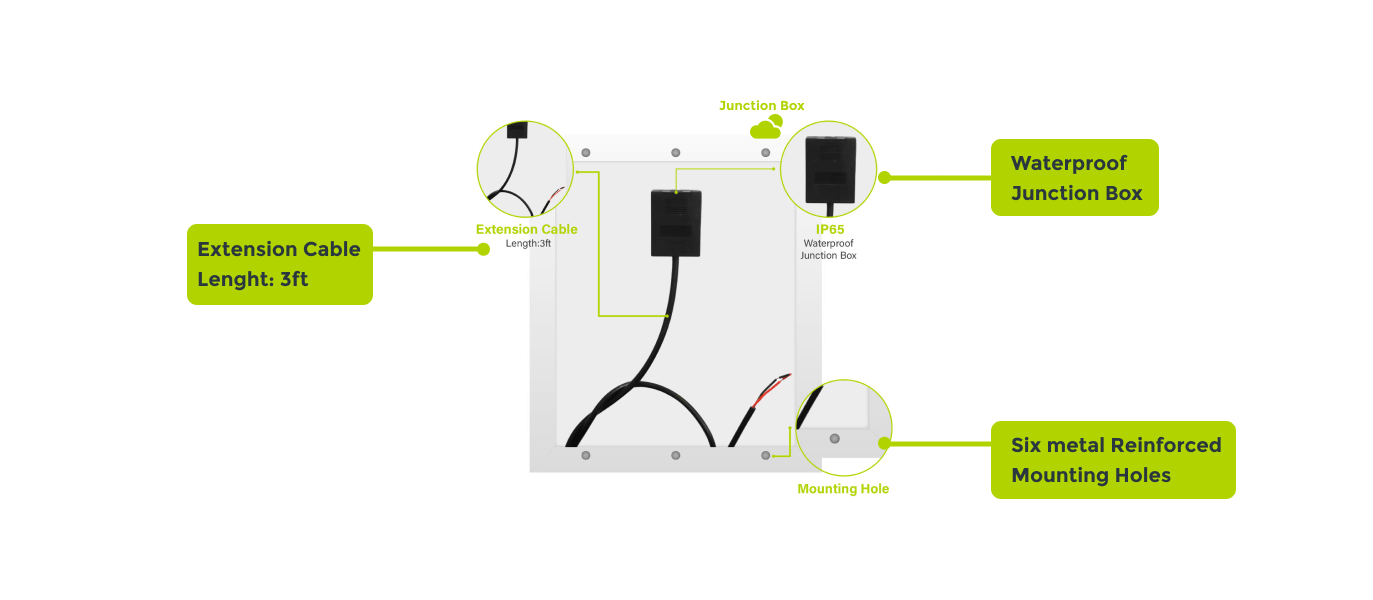

  • Heavy-duty anodized frame with pre-drilled holes for mounting
  • Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)
  • High-transparent, low iron tempered glass
  • Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan
  • Product dimensions: 225 x 195 x 18 mm (8.86 x 7.68 x 0.71 in)
  • Pre-attached 3ft wire with bare ends
  • Compatible mount brackets (sold separately): NPB-UZ, NPB-35P
  • Product Code NPA5S-12I
  • Maximum power (Pmax) 5W
  • Voltage at Pmax (Vmp) 17.37V
  • Current at Pmax (Imp) 0.35A
  • Open-circuit voltage (Voc) 20.04V
  • Short-circuit current (Isc) 0.37A
  • Temperature coefficient of Voc -(80±10)mV/°C
  • Temperature coefficient of Isc (0.065±0.015)%/ °C
  • Temperature coefficient of power -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
  • Operating temperature -40°C to 85°C
  • Maximum system voltage 1000V DC
  • Power tolerance ± 3%
  • 2-Year Limited Material and Parts Workmanship Warranty
  • 10-Year 90% Output Warranty
  • 25-Year 80% Output Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.

  • 13th Jul 2022 Katherin Jessen

    5

    Great item for a great price, best we could find anywhere

  • 8th Jul 2022 Mr. S

    5

    Arrived fast and it is in perfect condition.

  • 3rd Jul 2022 Gery

    5

    Good panel, I connected it to an inexpensive PWM charge controller and a 7 amp 12v battery. I use it to power a 12v trailcam.

  • 30th Jun 2022 Michael.P

    5

    Seems like a sturdy well made solar panel. I'm using it to charge my auto gate battery, working great so far. Quick shipping and good price

  • 27th Jun 2022 Hodges

    5

    Got this panel to replace a few smaller 2.5W panels. This is slightly larger, but delivers much more power. The unit is well constructed with a front glass cover and a frame which is made well. Unlike the smaller epoxy coated panels, the glass covered panel is showing much better low light performance/ shaded/cloudy output power. Happy with the performance.
