New 5W 12V Monocrystalline Solar Panel

Name: New 5W 12V Monocrystalline Solar Panel
SKU: NPA5S-12J
Price: 22.99 USD
Availability: InStock

SKU: NPA5S-12J

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's New 5W 12V Monocrystalline Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small off-grid applications.

Key Features

5W/12V Monocrystalline solar panel
High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 12V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting
Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

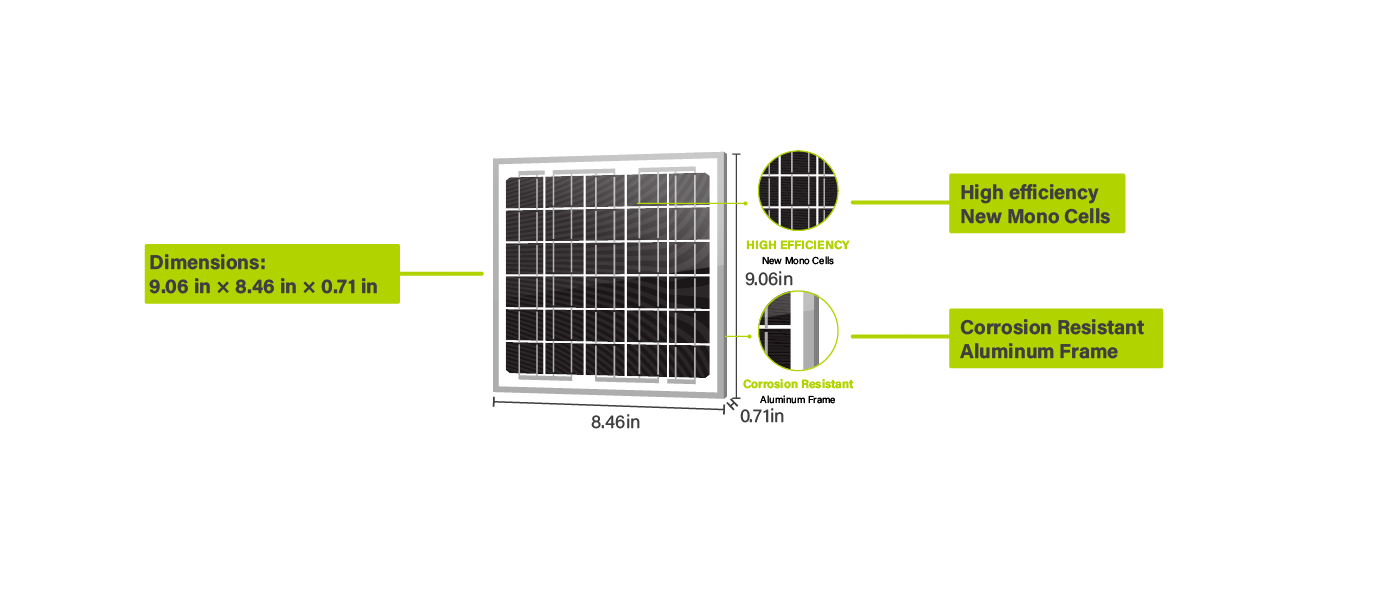

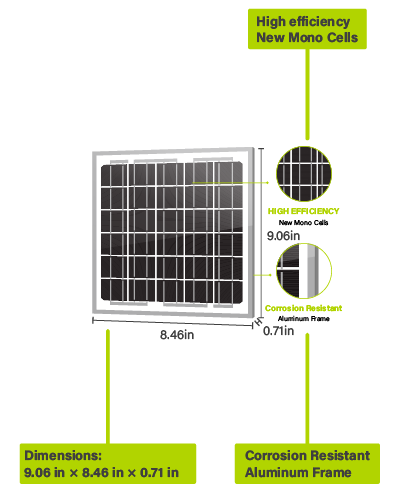

Product dimensions: 230 x 215 x 18 mm (9.06 x 8.46 x 0.71 in)

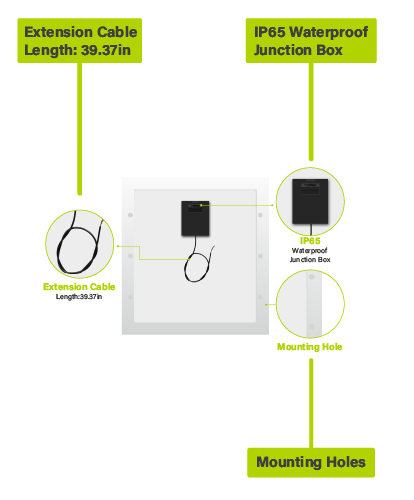

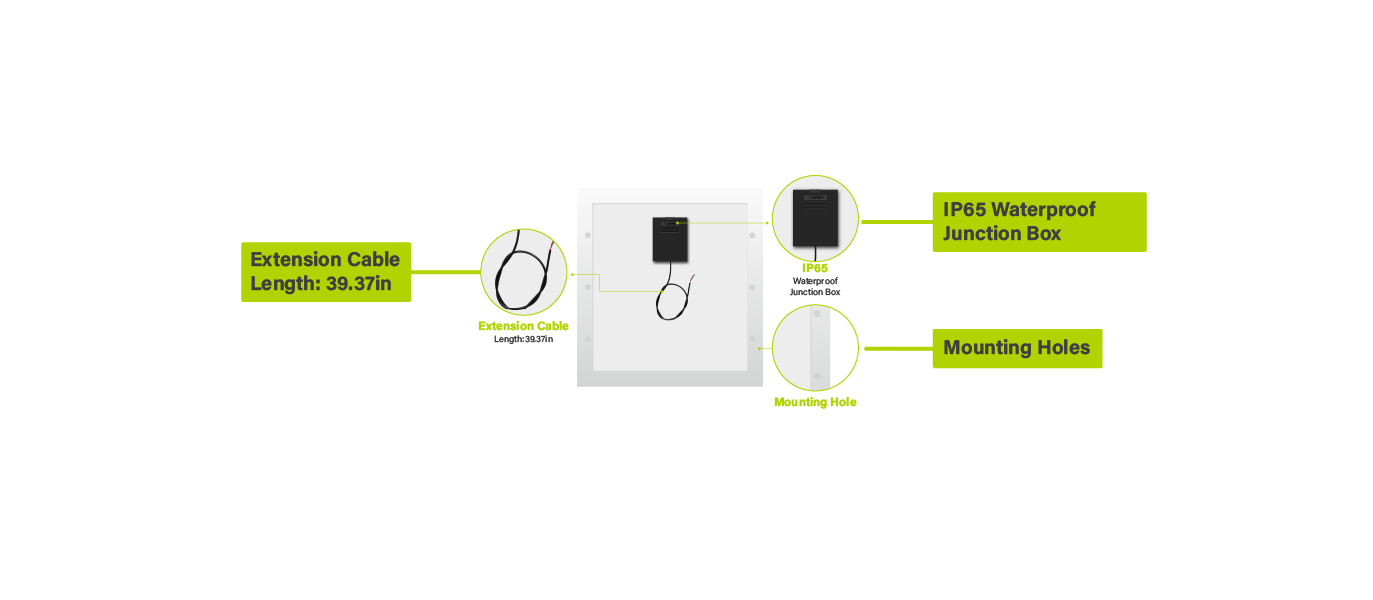

Pre-attached 3ft wire with bare ends
Compatible mount brackets (sold separately): NPB-15P, NPB-35P

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPA5S-12J
Maximum power (Pmax) 5W
Voltage at Pmax (Vmp) 17.2V
Current at Pmax (Imp) 0.3A
Open-circuit voltage (Voc) 20.23V
Short-circuit current (Isc) 0.32A
Temperature coefficient of Voc -0.28%/°C

Temperature coefficient of Isc +0.05%/°C
Temperature coefficient of power -0.36%/°C
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 45±2°C
Operating temperature -40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%

2-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
