WIRING YOUR OFF-GRID SOLAR SYSTEM FOR 12V, 24V, OR 48V: PROS AND CONS

When building an off-grid solar system, choosing between 12V, 24V, and 48V isn’t just a technical detail — it shapes how efficient, cost-effective, and compatible your system will be.

A 12V setup is often the go-to for smaller systems like RVs, boats, or tiny cabins. It’s easy to wire, uses widely available parts, and pairs well with many DC-powered devices. The tradeoff is that higher currents at this voltage require thicker wires, which can increase material costs and energy loss over longer distances.

Moving to 24V improves efficiency by cutting the current in half for the same power output, allowing for smaller-gauge wires and reduced voltage drop. This makes it a strong middle ground for medium-sized systems. It also provides more flexibility when wiring solar panels and configuring battery banks, and with a step-down converter you can still run 12V appliances.

At 48V, efficiency improves even further. Lower current means cooler operation, longer cable runs with less loss, and the ability to handle larger loads — making it ideal for full-size off-grid homes or power-hungry setups. The downside is that components for 48V systems can be more expensive and harder to find in remote areas.

Battery configuration is key to reaching your target voltage. Two 12V batteries in series produce 24V; four in series make 48V. Series wiring raises voltage without changing amp-hour capacity, while parallel wiring increases capacity at the same voltage. The best setup depends on your power needs, space, and growth plans.

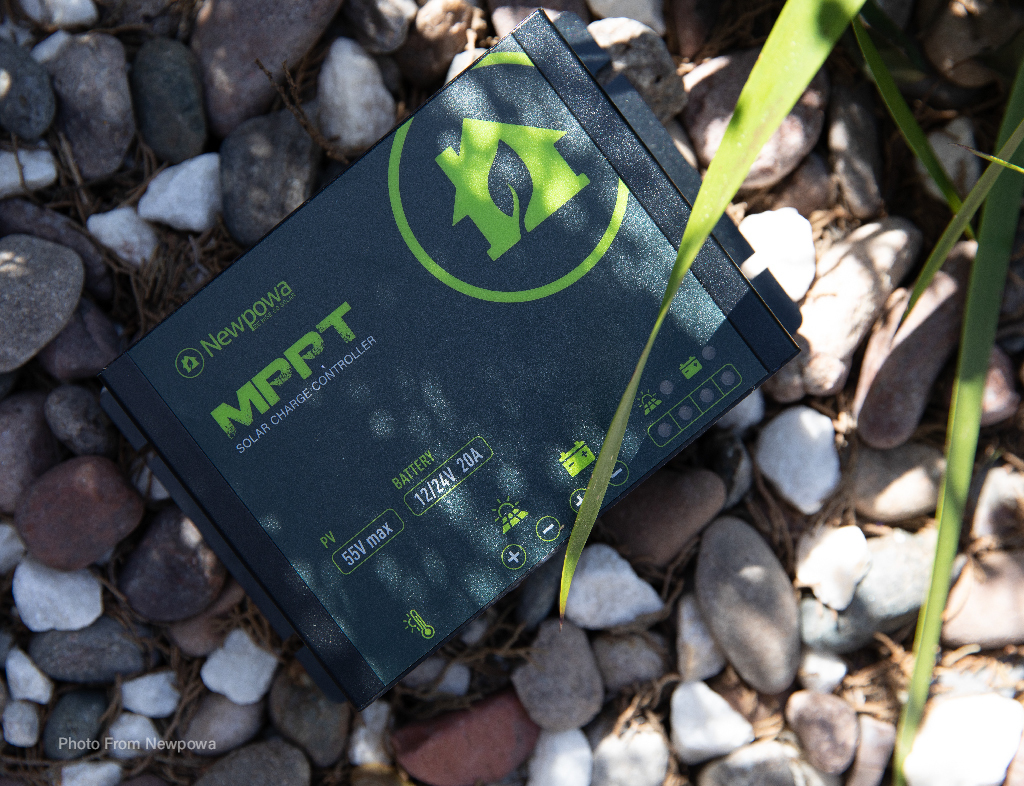

Cost considerations extend beyond wiring. Higher-voltage charge controllers and inverters may cost more upfront, but they run more efficiently and can extend system life under heavy use. Lower-voltage systems often have cheaper initial components, but wiring and expansion limits can make them less cost-effective for bigger projects.

Appliance compatibility also plays a role. Many small DC devices are built for 12V, while most household appliances require AC power from an inverter. Higher-voltage systems tend to integrate more smoothly with large AC loads, especially if you’re running multiple high-demand appliances at the same time.

Whether 12V, 24V, or 48V is right for you comes down to system size, efficiency goals, budget, and the types of devices you plan to power. Choosing the right voltage from the start ensures your off-grid system will deliver reliable, efficient power for years to come.
