170W 12V Monocrystalline Solar Panel

Name: 170W 12V Monocrystalline Solar Panel
SKU: NPA170D-12J
Price: 183 USD
Availability: InStock

SKU: NPA170D-12J

Product Rating:

Current Stock:

Technical Parameters

Description

Newpowa's 170W 12V Monocrystalline High-Efficiency Solar Panel is commonly paired with RV, marine, camping, traffic signals, and various off-grid applications.

Key Features

170W/12V Monocrystalline high-efficiency solar panel
High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
Nominal 12V DC for standard output
Heavy-duty anodized frame with pre-drilled holes for mounting
Rugged design to withstand high winds (2400Pa), hail &snow load (5400Pa)
High-transparent, low iron tempered glass
Durable TPT backsheet - dissipates heat to optimize performance and enhance longevity

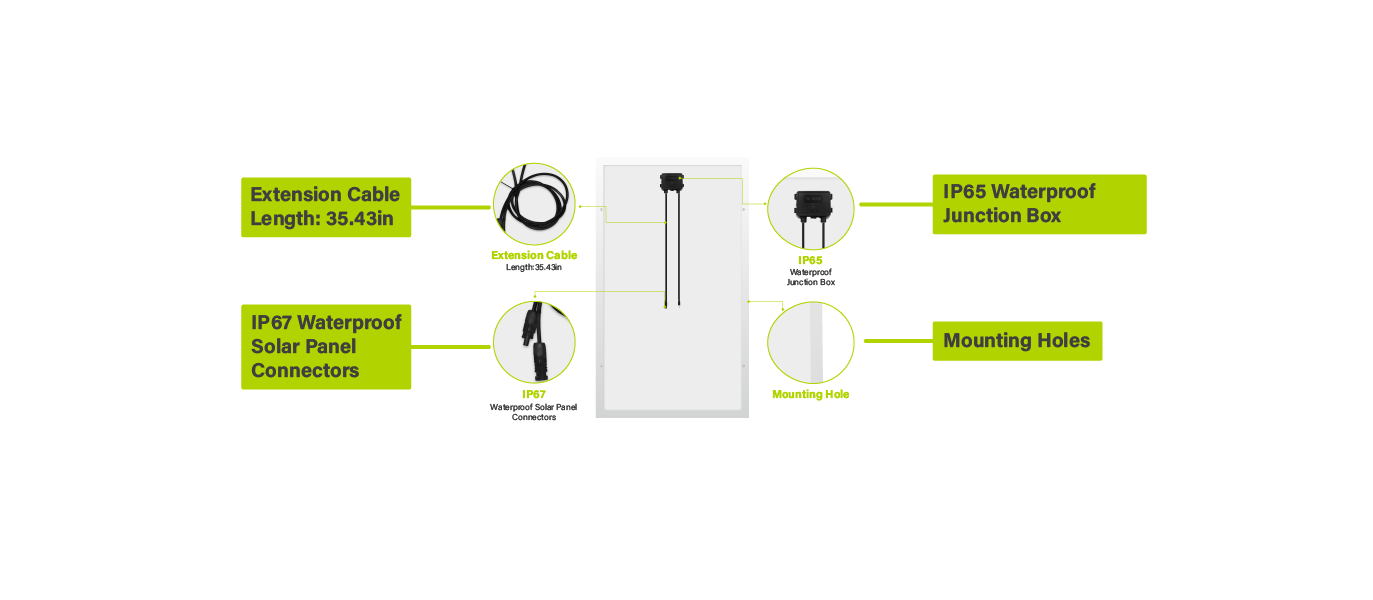

Built-in bypass diodes within junction box that minimize power drops caused by shading
Pre-attached 3ft wire with connectors (M/F)

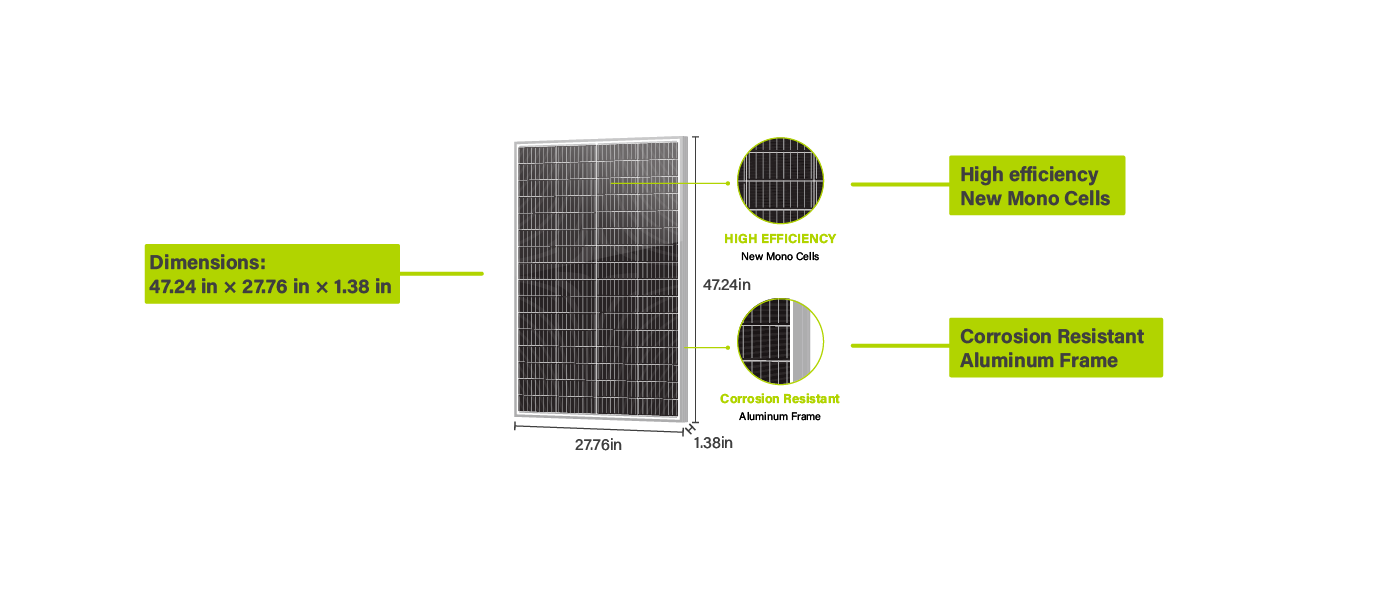

Dimension: 47.24 x 27.76 x 1.38 in (1200 x 705 x 35 mm)

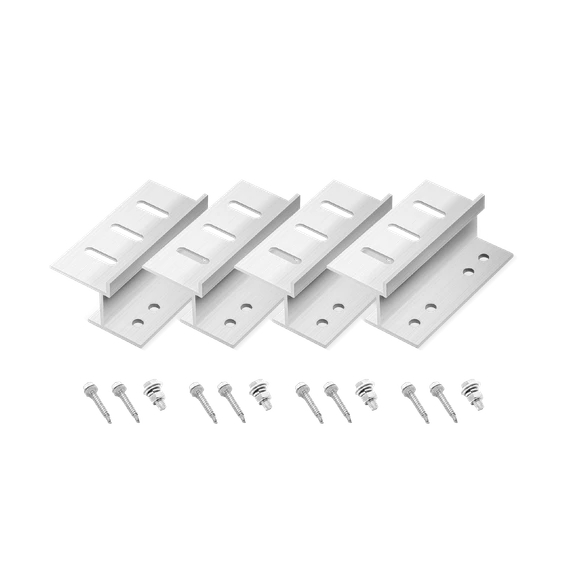

Compatible mount brackets (sold separately): NPB-UZ, NPB-UM, NPB-UP, NPB-UV, NPB-220P, NPB-410P, NPB-440P, NPB-200T, NPB-400T

TECH & SPECS
Warranty
Shipping Policy
Downloads

Product Code NPA170D-12J
Maximum power (Pmax) 170W
Voltage at Pmax (Vmp) 18.44V
Current at Pmax (Imp) 9.22A
Open-circuit voltage (Voc) 21.64V
Short-circuit current (Isc) 9.82A
Temperature coefficient of Voc -0.36%/K

Temperature coefficient of Isc +0.07%/K
Temperature coefficient of power -0.38%/K
NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 45±2°C
Operating temperature -40°C to 85°C
Maximum system voltage 1000V DC
Power tolerance ± 3%
Maximum Series Fuse Rating 15A

10-Year Limited Material and Parts Workmanship Warranty
10-Year 90% Output Warranty
25-Year 80% Output Warranty

Newpowa offers free shipping for all domestic orders (48 states). Your order will be shipped within 1-2 business days from the date payment is cleared plus transit time, ships from Southern California. Please note that we are unable to ship to PO Box addresses for any size of solar panels. Upon shipment, a tracking number will be provided.
