110W 9V Monocrystalline Solar Panel

SKU: NPA110S-09I

Product Rating:

Description

Newpowa's 110W 9V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to applications when away from the grid. It is commonly used in RV, marine, gate opener, boat, camping and many other off-grid applications

9 BusBar Features

  • Under ideal conditions, 9 busbar PV module will outperform the dated 5 and 6 busbar technology. The void space reduction between the 9BB solar cells is designed to enhance the overall efficiency of the PV module by lowering current lengths and mitigating against loss of output.

Key Features

  • 110W/9V monocrystalline high-efficiency solar panel
  • Maximum Efficiency: 21.3%
  • High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
  • Nominal 9V DC for standard output
  • Heavy-duty anodized frame with pre-drilled holes for mounting
  • Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)

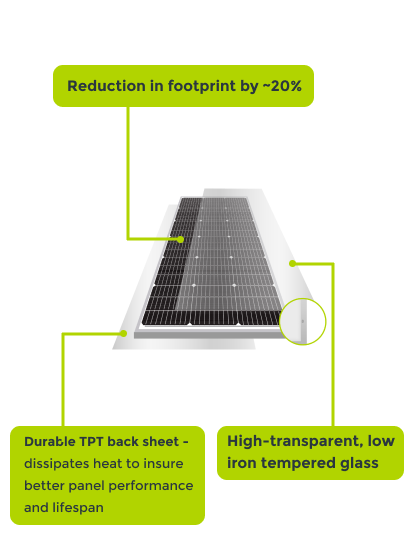

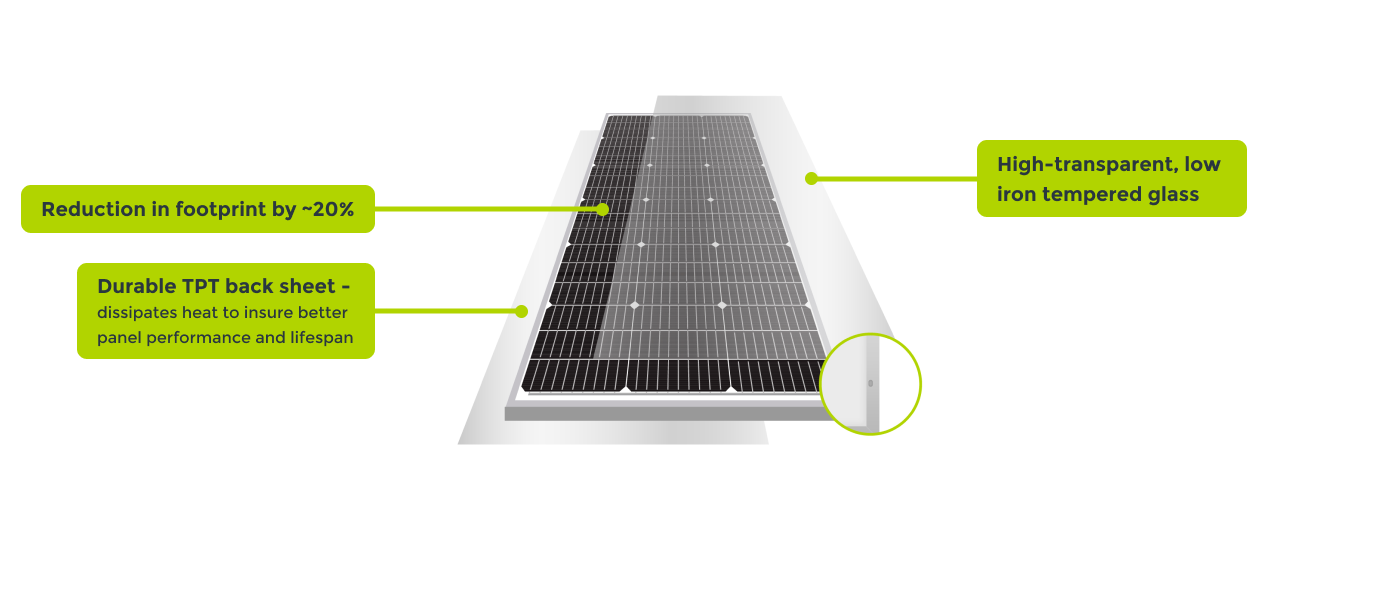

  • High-transparent, low iron tempered glass
  • Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan

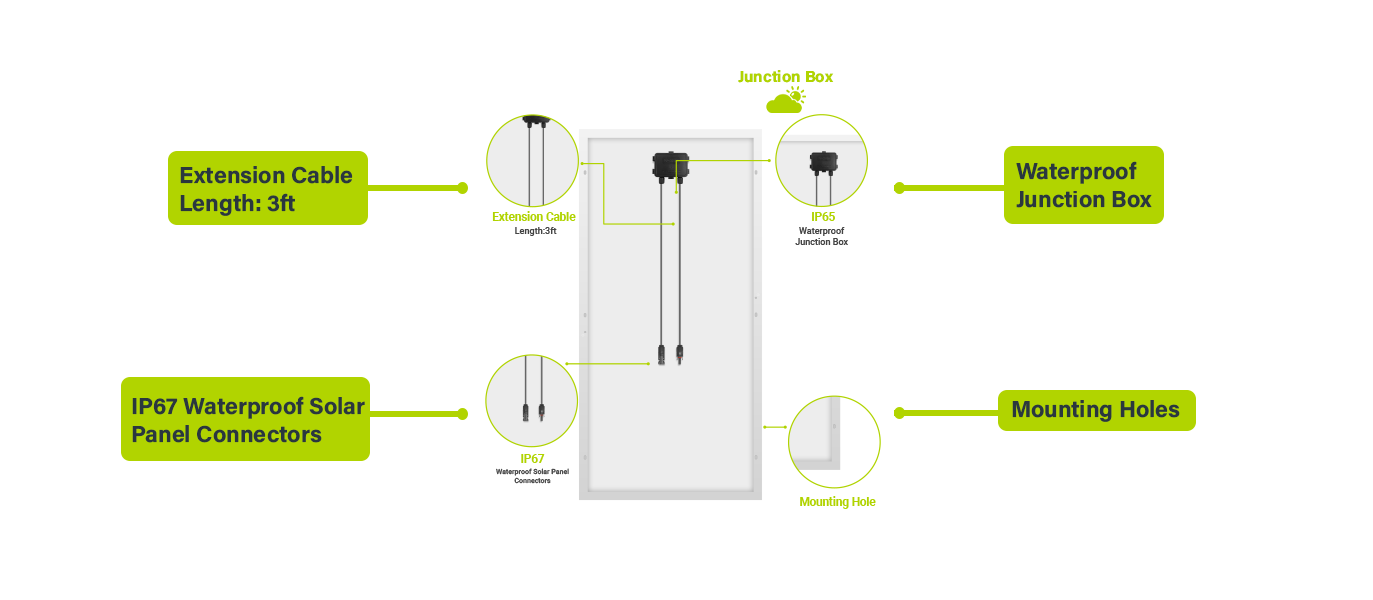

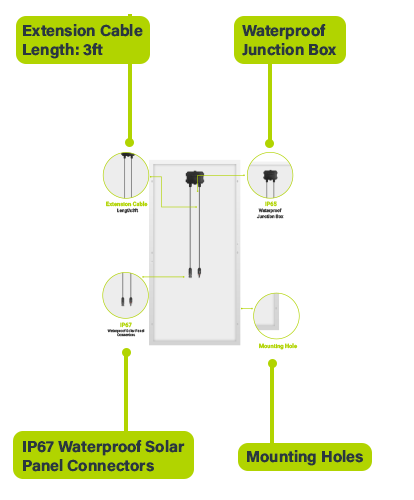

  • Pre-installed bypass diodes inside junction box that minimize power drops caused by shading
  • Pre-attached 3ft wire with connectors (M/F)
  • Product dimensions: 1080 x 530 x 30mm (42.52 x 20.87 x 1.18 in)

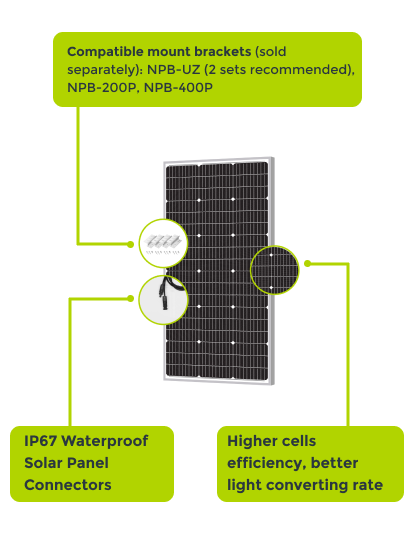

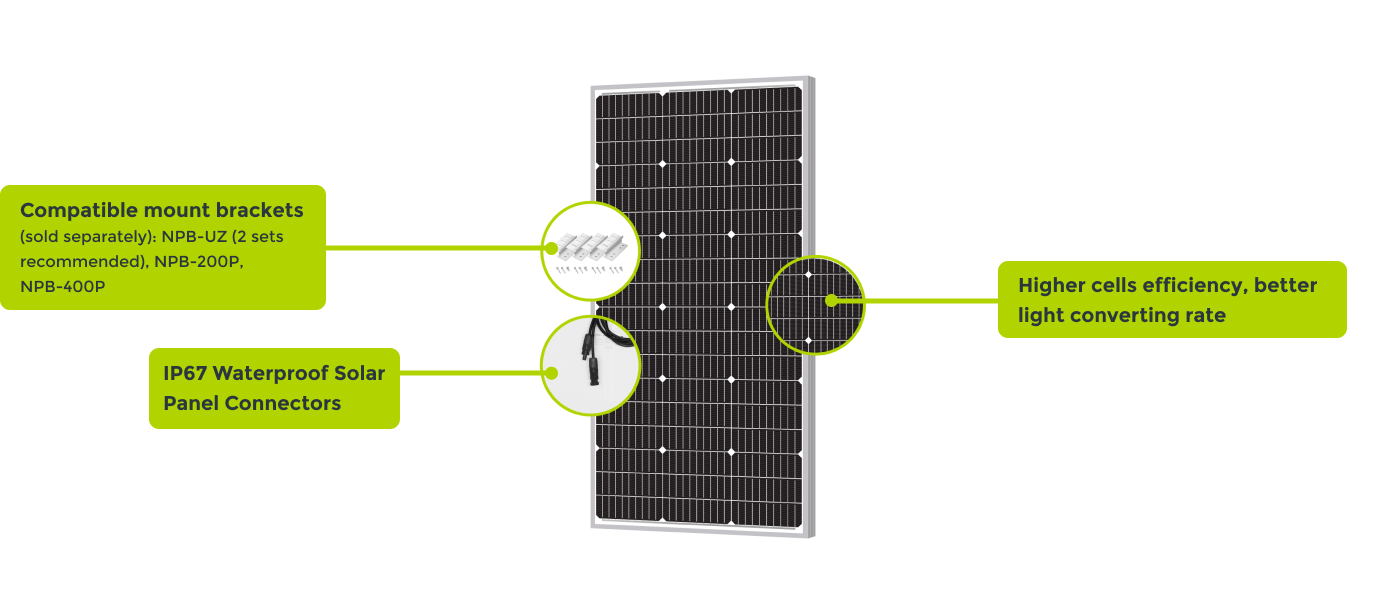

  • Compatible mount brackets (sold separately): NPB-UZ, NPB-100P, NPB-200P, NPB-400P
  • Product Code NPA110S-09I
  • Maximum power (Pmax) 110W
  • Voltage at Pmax (Vmp) 15.84V
  • Current at Pmax (Imp) 6.96A
  • Open-circuit voltage (Voc) 18.18V
  • Short-circuit current (Isc) 7.34A
  • Temperature coefficient of Voc -(80±10)mV/°C
  • Temperature coefficient of Isc (0.065±0.015)%/ °C
  • Temperature coefficient of power -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
  • Operating temperature -40°C to 85°C
  • Maximum system voltage 1000V DC
  • Power tolerance ± 3%
  • Maximum Series Fuse Rating 15A
  • 2-Year Limited Material and Parts Workmanship Warranty
  • 10-Year 90% Output Warranty
  • 25-Year 80% Output Warranty
